* This radio is specifically for the Trade Up Program *
Powerful amplifiers, streamlined circuits, and efficient receivers, make the Rugged M1 mobile 2-way radios easy to use and go the distance.
Designed from the ground up in Arroyo Grande California, the M1 is IP67 waterproof, and has a all-aluminum chassis protects vital circuits from Radio Frequency Interference (RFI) improving performance and reducing noise. The large, clear, easy-to-read display provides quick access to programmable controls, and an intuitive user interface. The included Accessory Hub provides convenient remote access to the programming cable connection and a 3.5 mm external speaker output.
Ready to expand with the Rugged Ready port allows you to connect an almost unlimited amount of Rugged accessories. From intercoms, to headsets and much more Rugged accessories have you covered.
From the deserts of Nevada to the Baja Peninsula the Rugged M1 is the tough competitor that wants to win.
Easy upgrade: fits all existing RM60 mounts.
- Waterproof, IP67 sealed housing
- Superior digital audio clarity
- Ergonomic Hand Mic with Scosche® MagicMount Magnetic Mount
- Digital / Analog VHF band mobile transceiver
- Powerful Mitsubishi Transmit (TX) amplifier
- Clear-Hear Superheterodyne receiver
- Programmable, Quick-Access controls

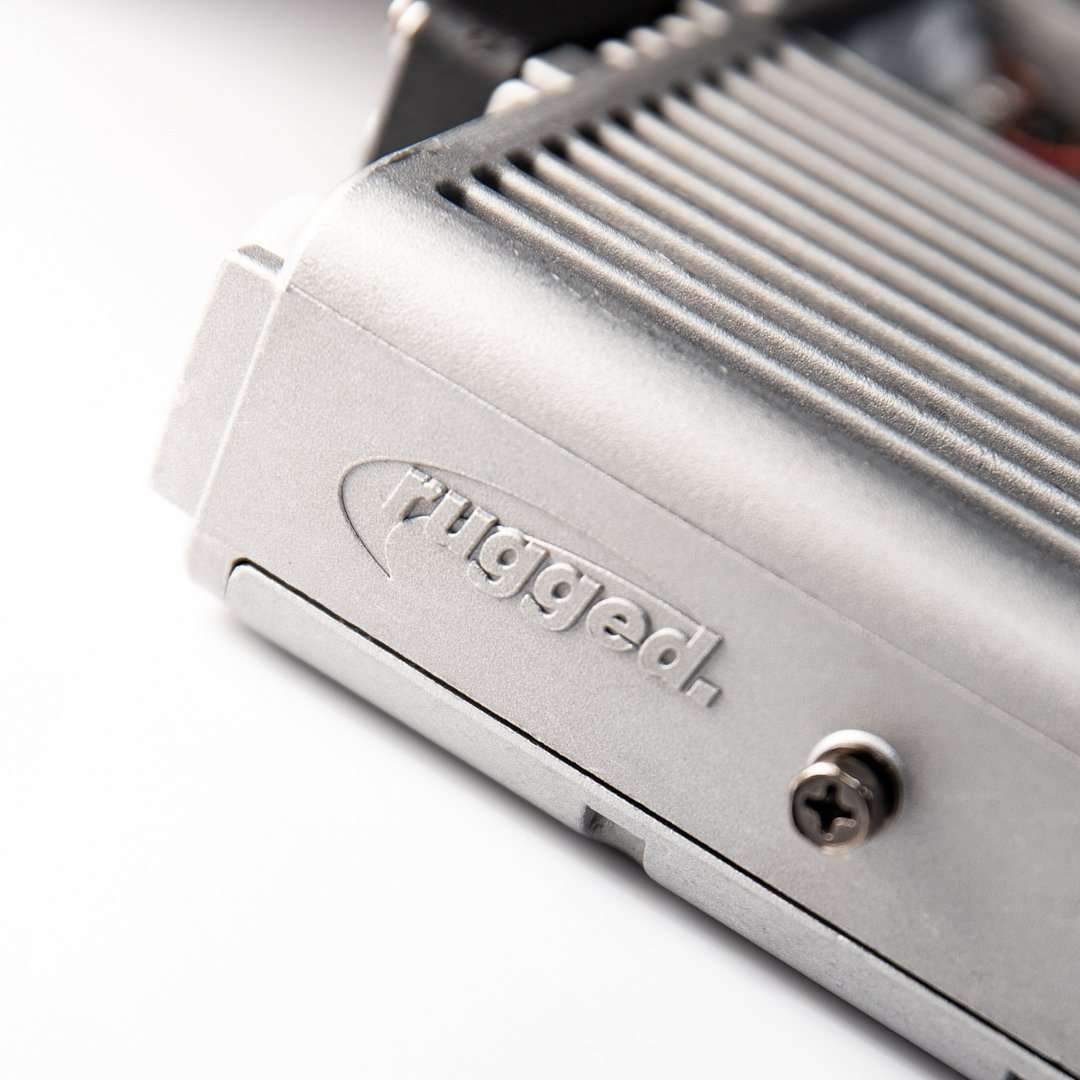

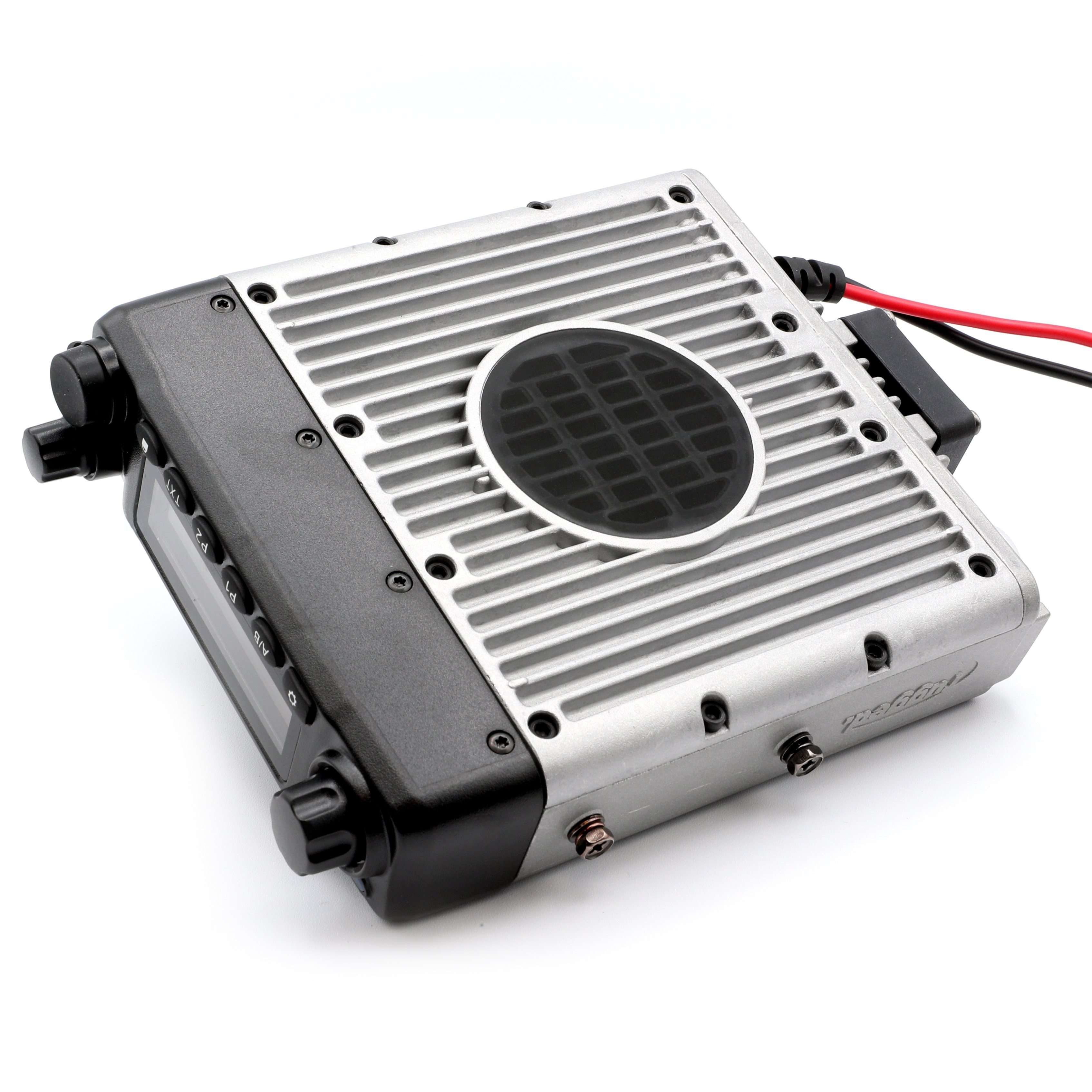

- RFI reflective aluminum chassis

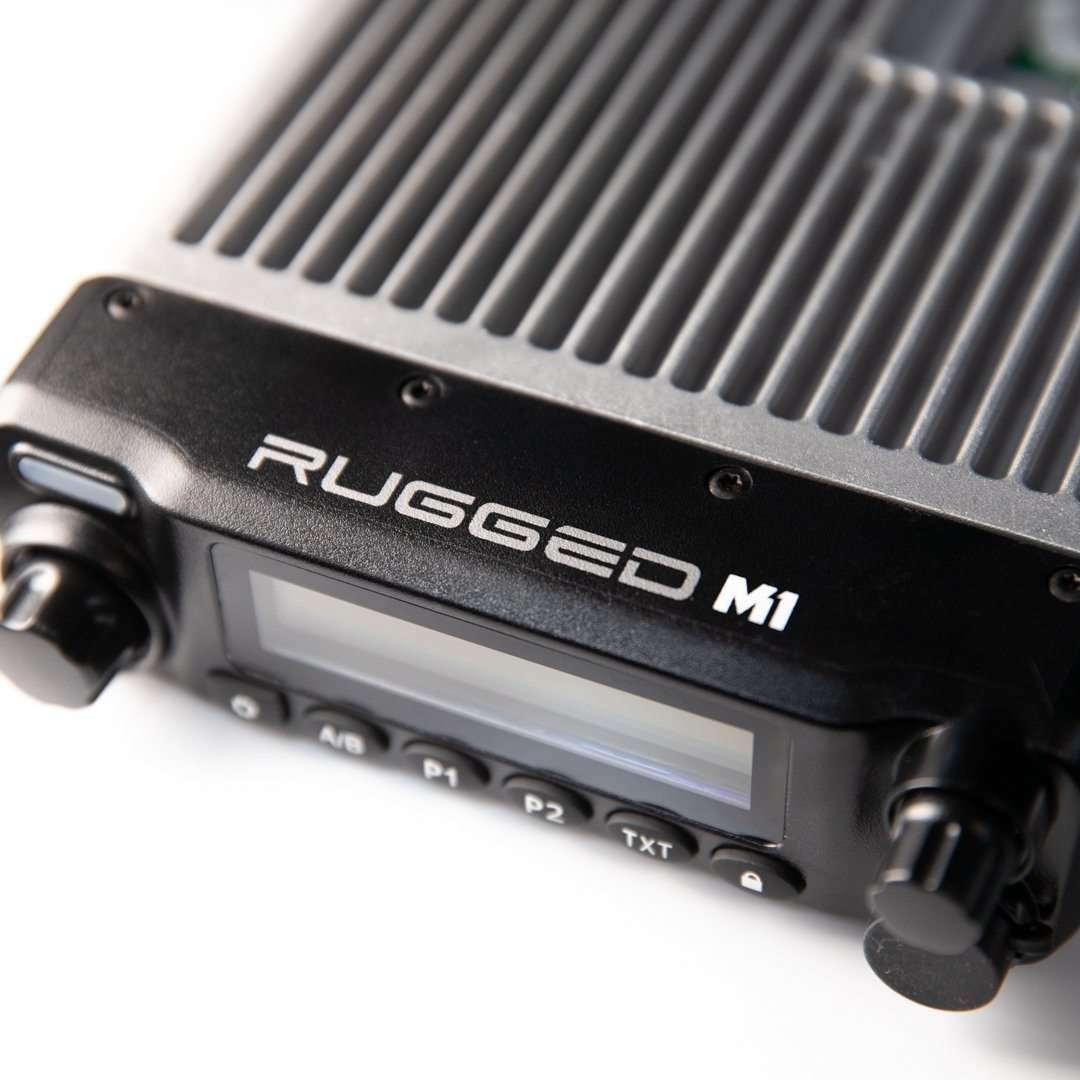

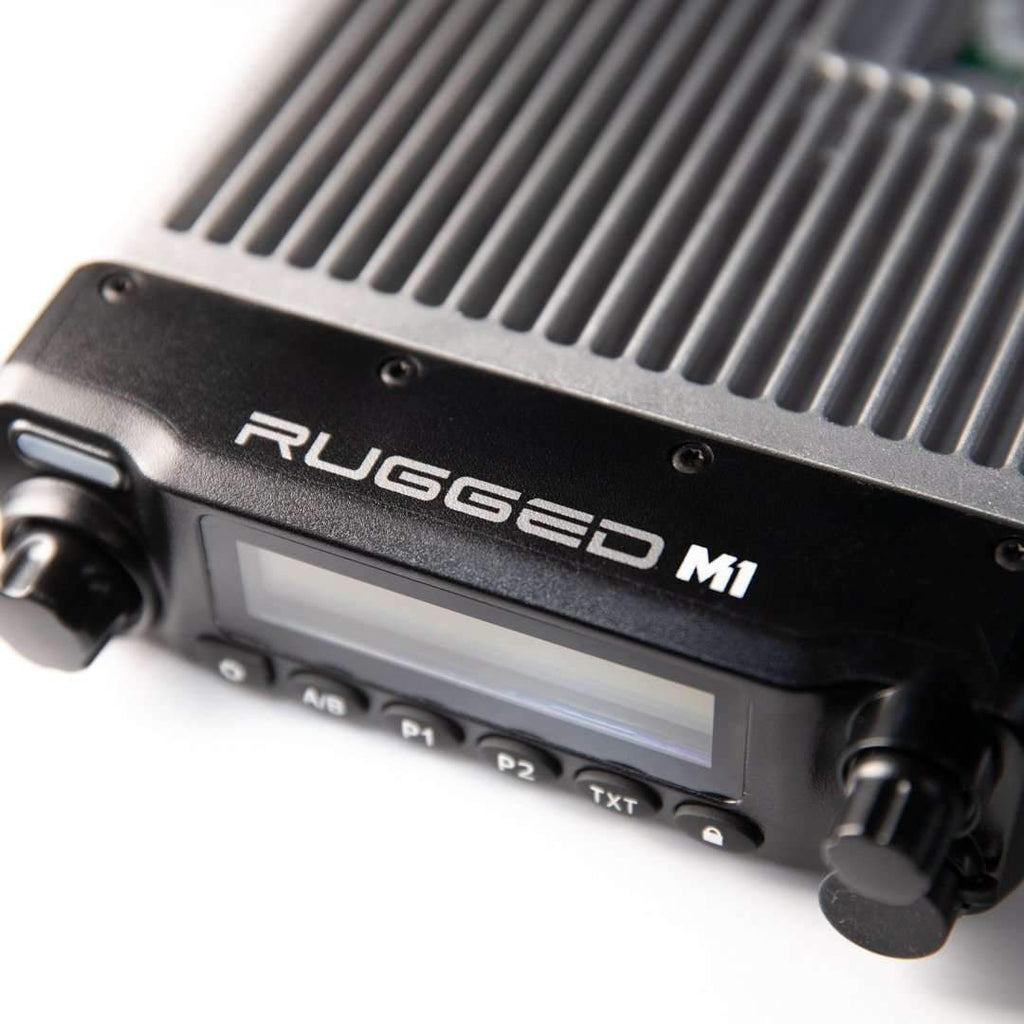

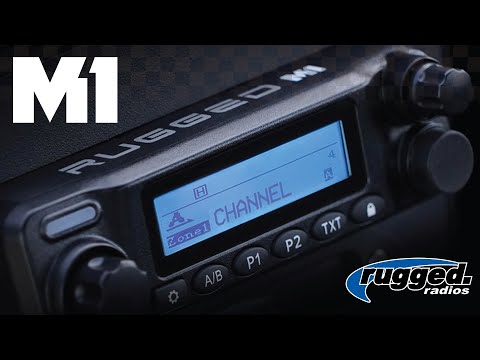

- Large, Easy to read LED Display
- Easy access remote Accessory Hub
- Upgradeable firmware
- 55 Watts
- Includes waterproof power cable as part of the Trade Up program

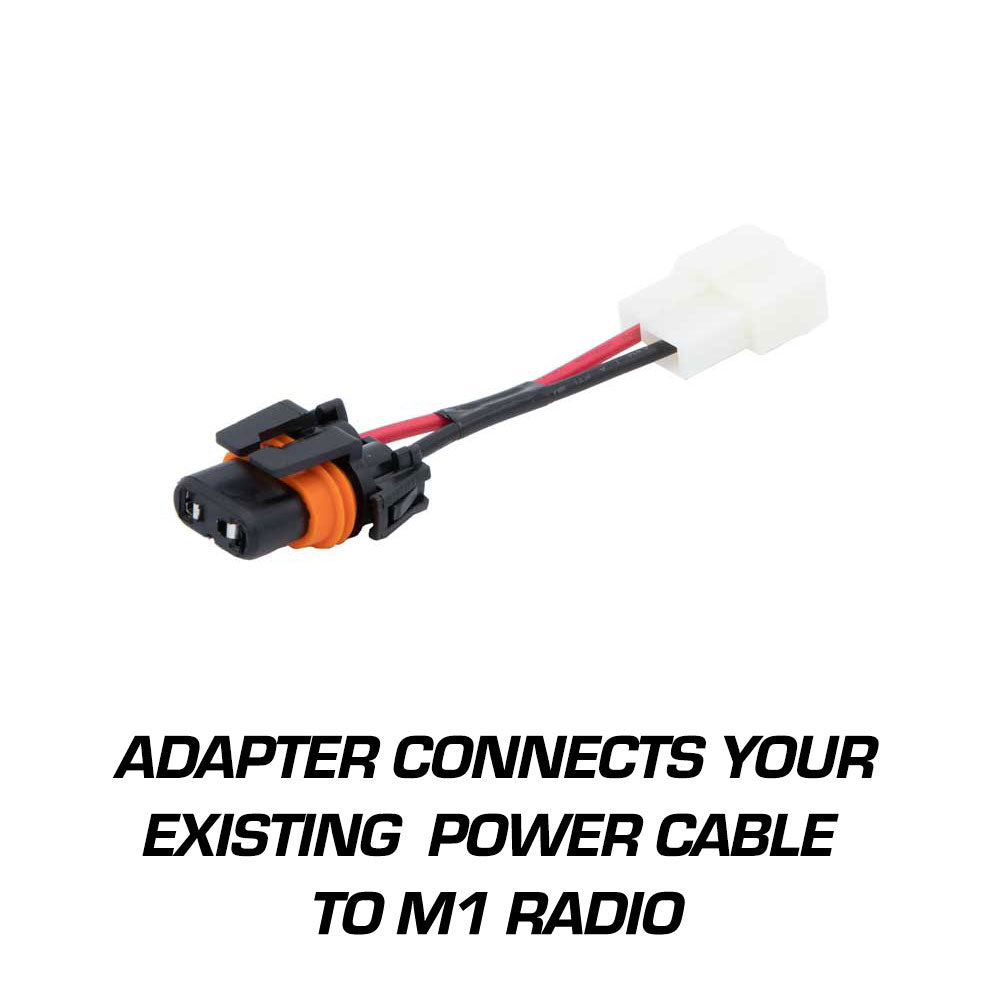

- Includes Power Adapter to connect your M1 to existing power harness
Note: Includes radio and hand mic only.
When the demand is on and weather gets tough the Rugged M1 is built to perform!
Dimensions:
185 mm x 141 mm x 40 mm
Compatibility:
This radio works with all VHF business band radios operating on the same frequencies. Radio models include, but are not limited to: RDM-DB, M1, RDH-X, R1, V3, RM60, RH5R, RDH16-V, as well as Icom, Motorola, Kenwood business band radios, and more.
User Manual: Click Here
- M1 Mobile Radio

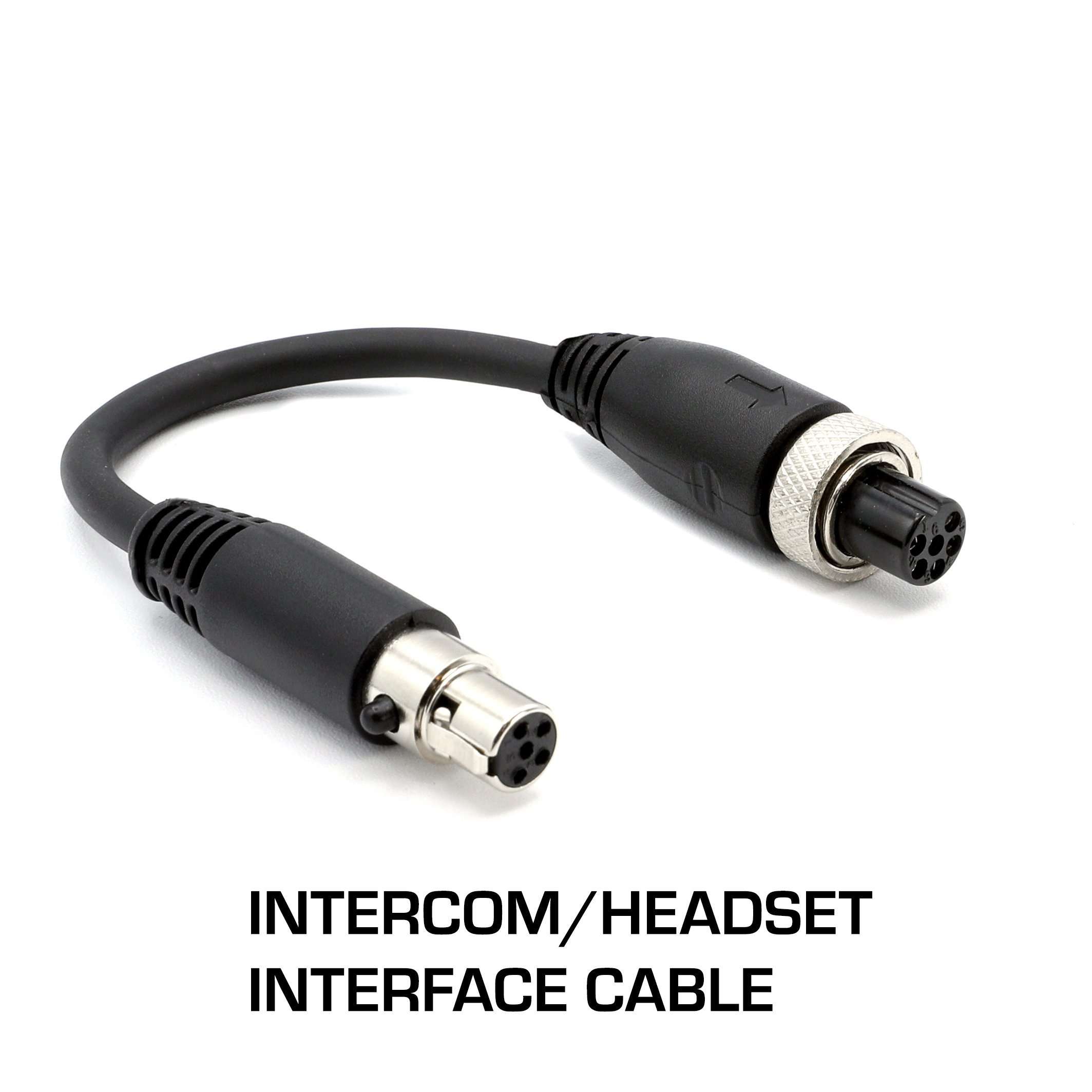

- Rugged Ready accessory intercom/headset interface cable

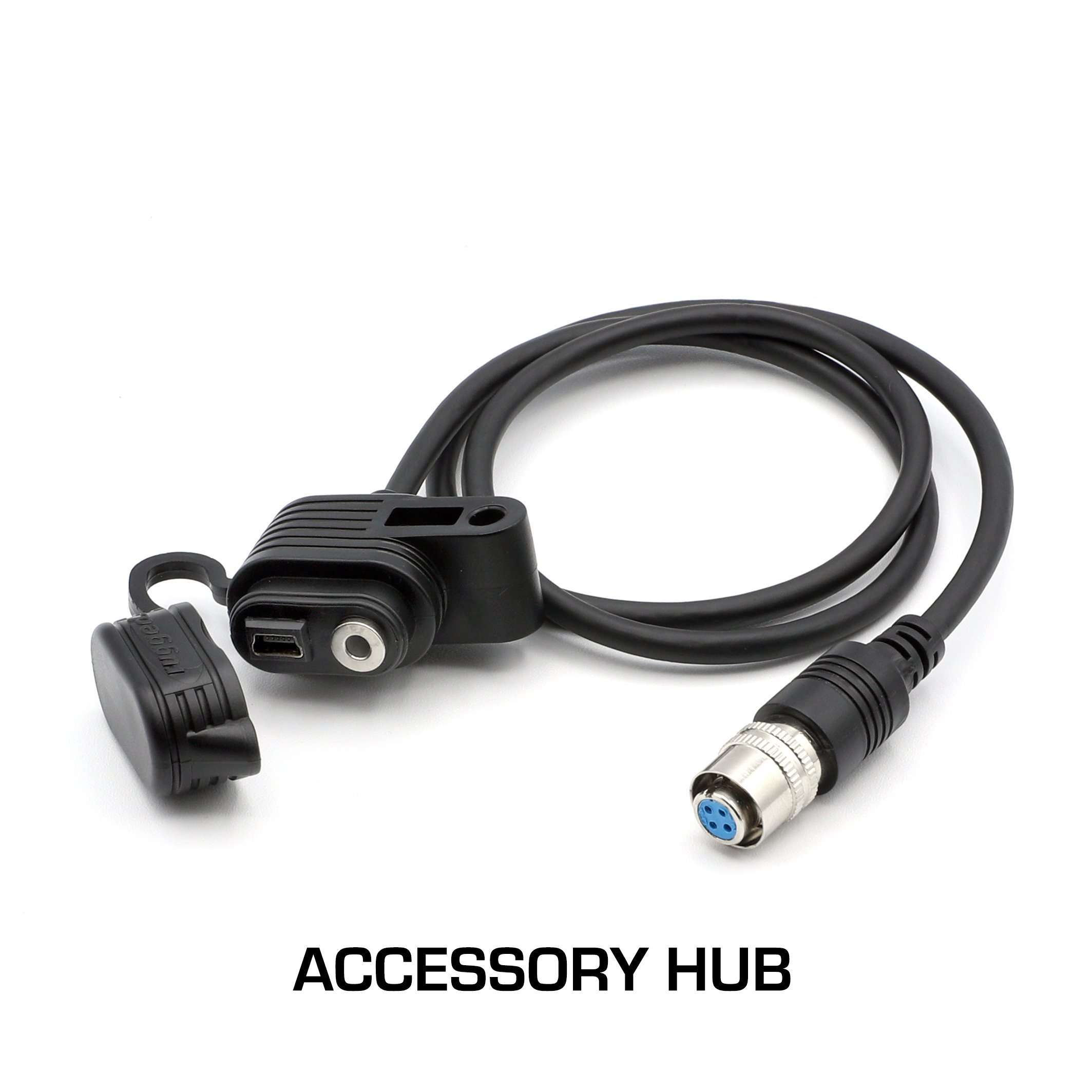

- Easy to Place 28" Accessory Hub cable for programming and external speakers
- Easy Angle universal mounting bracket

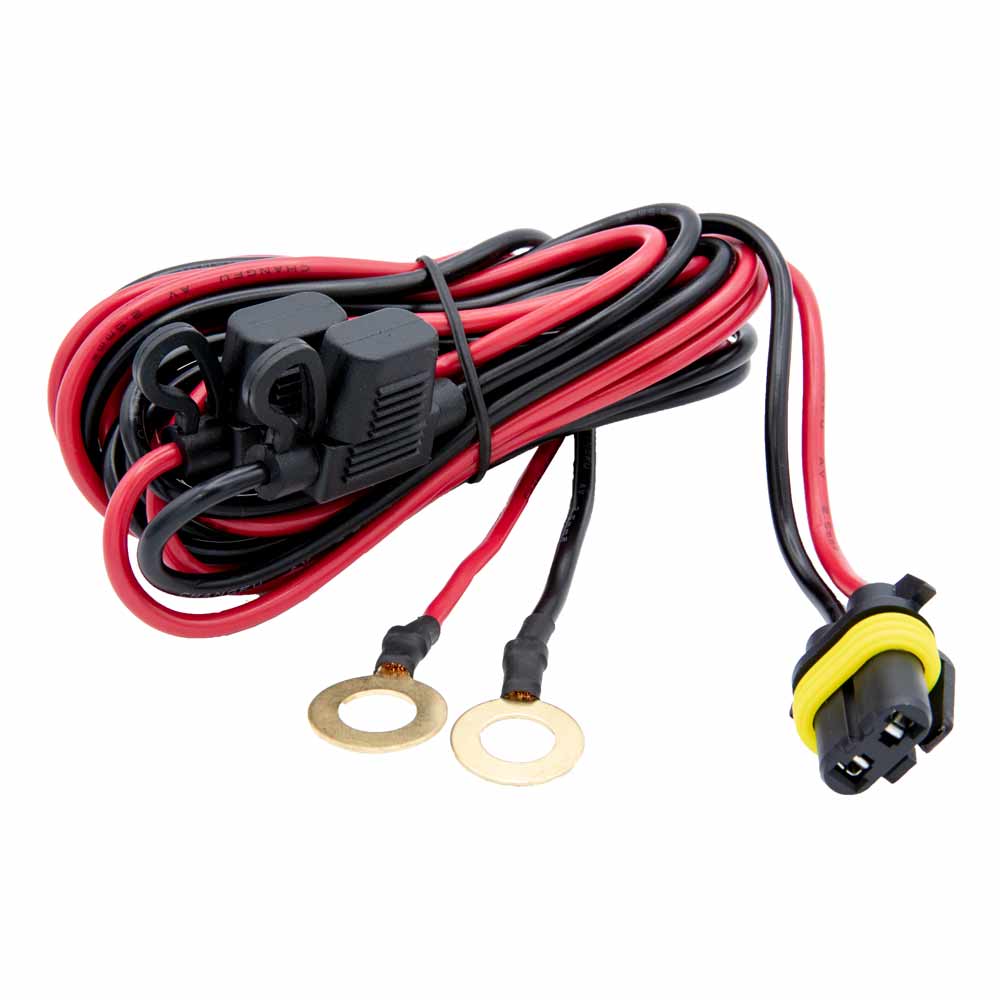

- Waterproof-connected power cable
- Ergonomic Hand Mic with Scosche® MagicMount Magnetic Mount
- Includes waterproof power cable as part of the Trade Up program
General
Frequency Range: 136-174MHz (VHF)
Channel Capacity: 1000
PLL Channel Spacing: 6.25/25/12.5/25kHz
Voltage Rating: DC 13.8V
Operating Temperature: -20ºC ~ +70ºC
Storage Temperature: -30ºC ~ +80ºC
Dimensions: 143 x 40 x 175mm
Compatible with American Military Standard:
(MIL-STD-810C/D/E)
Transmitter
RF Power Output:
5W (Low)
25W (Medium)
55W (High)
FM Hum & Noise:
-40dB @12.5kHz
-45dB @25kHz
Modulation Limited:
±2.5kHz @12.5kHz
±5.0kHz @25kHz
Conducted/Radiated Emission:
-36dBm < 1GHz
-30dBm > 1GHz < 4GHz
Adjacent Channel Power:
-60dB @12.5kHz
-65dB @25kHz
Audio Response: +1dB ~ -3dB
Audio Distortion: 3%
FM Modulation:
12.5kHz: 11KOF3E
25kHz: 16KOF3E
4FSK Digital Modulation:
12.5kHz Only Data: 7K60FXD
12.5kHz Data & Audio: 7K60FXE
Digital Protocol: DMR / ETSI TS 102361-1, -2, -3
Digital Vocoder Type: AMBE++
Digital Protocol: DMR
Receiver
Frequency Stability (-20ºC +60ºC, +25ºC):
±1.0ppm
Digital Sensitivity:
0.3μV / -117.4dBm (BER* 5%)
0.7μV / -110dBm (BER* 1%)
Analog Sensitivity:
0.35μV / -116dBm (20dB SINAD)
0.22μV / -120dBm (20dB SINAD)
Rated Audio: 3W
Adjacent Channel Selectivity:
TIA630C:60dB @12.5kHz
ETSI: 60dB @12.5kHz
Intermodulation:
TIA603C:65dB
ETSI: 65dB
Co-Channel Rejection: 12dB @12.5kHz
Spurious Rejection:
TIA603C:70dB
ETSI:70dB
Audio Distortion @ Rated Audio: ≤ 3%
FM Hum & Noise:
-40dB @12.5kHz
-45dB @25kHz
Audio Response: +1dB ~ -3dB
Spurious Emission:
-57dBm < 1GHz
-47dBm > 1GHz
Block: 84dB
*BER = Bit Error Rate
